01 — Getting live Libre 3 glucose onto a Mac, without the cloud

2026-10-15 · investigation report · code in spikes/

Goal

Replace the current setup — an xbar plugin polling LibreLinkUp over the internet — with a macOS menubar item showing the glucose number and a precise trend arrow, with data that never leaves the user’s devices.

Questions:

1. Can macOS read the FreeStyle Libre 3 sensor itself?
2. Otherwise: can Juggluco on the phone send the data to the Mac without internet?
3. Added during the investigation: it must also work with no shared network — Mac with no Wi-Fi at all, or Mac on home Wi-Fi while the phone is on mobile data. USB is not acceptable.

Setup

Sensor	FreeStyle Libre 3 Plus (15-day wear), started 2026-10-03
Phone	Pixel 10 Pro, Android 17 (SDK 37), rooted (KernelSU Next); Juggluco 11.4.1; GlucoDataHandler
Mac	macOS 27.0.1, Apple Silicon; Swift 6.4 (Command Line Tools only, no Xcode)
Units	mg/dL; personal thresholds low 65 / slightly high 145 / high 185

Results at a glance

Path	Works?	Latency	Notes
Mac ↔ sensor directly (BLE)	✅ proven	—	Phone must release the sensor; per-sensor pairing data from the phone; NFC still needed to start a sensor
Juggluco web server → Mac over USB (adb forward)	✅	instant	Not practical (cable)
Juggluco web server → Mac over Wi-Fi	✅	~0.3 s	Needs a shared network and Juggluco “Local only” off
Juggluco → GlucoBridge (phone) → Mac over BLE	✅	~0.2–1 s	Works with Mac offline / phone on mobile data; 17/17 readings with phone unplugged + screen off
Bluetooth PAN tethering	❌	—	macOS 27 has no Bluetooth PAN support
Juggluco’s built-in “BLE mirror”	⚠️ not built	—	Feasible but large, undocumented, moving target

1. Can macOS read the Libre 3 directly?

Yes — but not as the everyday path.

• While Juggluco is connected, a BLE scan from the Mac (spikes/ble-scan) sees no Libre: the sensor stops advertising once a device is connected to it.
• Juggluco (GPLv3) ships an open-source, portable implementation of the Libre 3 app-side protocol (since v10.10). It builds unmodified for macOS/arm64. On iOS, LibreLoop and Trio v1.0 already read Libre 3 natively; no macOS app existed.
• Experiment (2026-10-15 18:33): with the phone’s Bluetooth turned off, the Mac found the sensor after ~10 s, connected, authenticated using the pairing data Juggluco had stored for this sensor, and received two live 1-minute readings: 182 mg/dL, −0.24 and −0.32 mg/dL/min. Nothing was sent to the sensor beyond what’s needed to connect and subscribe. The phone was off Bluetooth ~75 s.
• Cross-check: when the phone reconnected, Juggluco backfilled the gap with exactly the same values (evidence, rows 17310/17311: 182, 182 — backfilled rows carry no rate). Live data resumed with no loss.

Constraints that rule it out as the main path:

• One device at a time. While the Mac holds the sensor, the phone (and its alarms) gets nothing.
• A phone is still required to start each sensor (NFC — Macs have none) and to provide that sensor’s pairing data.
• Legal grey zone: the protocol implementation is a port of Abbott’s app logic. The experiment’s code is kept out of this public repo.

Possible future use: an emergency fallback when the phone is gone (dead battery, left at home).

2. Juggluco → Mac without internet

Juggluco has a built-in, Nightscout-compatible web server (Settings → Web server). Facts confirmed from its source and live:

• Port 17580 (HTTP), 17581 (HTTPS). “Local only” accepts the TCP connection and then resets non-loopback clients — so over Wi-Fi it must be off; over USB (adb forward tcp:17580 tcp:17580) it can stay on.
• Optional API secret: header api-secret: <sha1 hex of secret>, or ?token=<secret>.
• GET /api/v1/entries.json?count=N — newest first. Default output is thinned to ~5 min; add interval=0 to get every 1-minute Libre 3 value.
• delta is the sensor’s rate × 5, not a difference between readings → rate = delta / 5 (mg/dL/min). A missing rate is reported as delta: 0 with direction: "".
• GET /x/live — Server-Sent Events: one glucose event per new reading, pushed as soon as the phone gets it, with glucoseMgDl and rateMgDlPerMinute. Heartbeat every 20 s.
• /x/stream — TSV with the per-minute Rate column (handy for analysis).
• Juggluco bug: “SingleDown” is never emitted — any rate ≤ −2 becomes “DoubleDown”. Use the numeric rate.
• The Nightscout uploader can also POST to any plain-HTTP LAN URL (must answer exactly HTTP 200) — a push alternative.

Rate precision: the sensor reports the rate with 0.01 mg/dL/min resolution; in a 5 h sample 98 % of values were non-integer (short runs of exact 0 occur). Enough to draw a continuous arrow.

Wi-Fi results (spikes/menubar, “auto” mode):

• Juggluco has no mDNS/Bonjour, so GlucoseBar sweeps the Mac’s subnet for :17580 and checks /api/v1/status.json → found the phone in ~1 s on a /24.
• History via entries.json?count=180&interval=0, then live via /x/live: ~0.3 s from the phone receiving a reading to the Mac showing it.
• After the phone’s Wi-Fi came back from an outage, GlucoseBar rediscovered the phone by itself.
• A macOS .app needs the Local Network permission for this.

3. With no shared network

Option	Mac offline	Mac Wi-Fi + phone mobile data	Verdict
Phone hotspot	✓ (Mac joins it)	✗ (one Wi-Fi radio)	Partial
Bluetooth PAN tethering	—	—	macOS 27 dropped it (no “Bluetooth PAN” port, no driver)
Tailscale / VPN	✗	✓	Needs internet
Juggluco “BLE mirror”	✓	✓	Mac would have to speak Juggluco’s mirror sync protocol (handshake + session crypto + acking its internal file-sync stream). ~1–1.4k lines of Swift against an undocumented protocol that changed several times in 2026. Rejected.
Companion app + BLE GATT	✓	✓	Chosen

GlucoBridge (spikes/glucobridge-android, Kotlin)

A foreground service on the phone that:

• follows Juggluco on 127.0.0.1:17580 (so “Local only” can stay on), and
• runs a BLE GATT server + advertises a custom service. The Mac (CoreBluetooth central) connects, reads a 3-hour per-minute history once, and subscribes to reading notifications.

Characteristic	UUID	Properties	Value (little-endian)
service	6c1f0001-5b8a-4d8e-9a3c-676c75636f42
READING	6c1f0002-…	read, notify	u32 epoch s ‖ u16 mg/dL ‖ i16 rate×100 (0x8000 = unknown)
HISTORY	6c1f0003-…	read (long)	u32 newest epoch s ‖ u16 mg/dL per minute, newest first (180 slots, 0 = gap)

Tests

Test	Result
BLE only (GlucoseBar -lan NO)	Found GlucoBridge in 3 s; every reading ~0.3 s after the phone
Phone Wi-Fi off (phone on mobile data, Mac on home Wi-Fi)	Wi-Fi transport dropped; BLE delivered every minute (19:03–19:05, ≤ 1.2 s)
Phone unplugged + screen off, 19:08–19:25	BLE 17/17 readings, 0 missed, worst 0.2 s, never disconnected
Both transports at once	Same reading arrives twice (BLE ~1 s earlier); the app merges them

Raw log: evidence/01-transport-tests.log. (Wi-Fi readings stop at 19:12 because “Local only” was switched back on — not a failure.)

Not yet validated: deep Doze (phone unplugged and still > 30–60 min), Mac sleep/wake, Mac with Wi-Fi truly off (simulated with -lan NO), range, long-term reconnect behaviour.

Gotchas:

• Android’s BluetoothGattServerCallback.onConnectionStateChange also fires for the phone’s own outgoing links (the sensor, a watch), so “connected centrals” is noisy — count subscriptions instead.
• The GATT service is unauthenticated: anyone nearby can read the value. Real app: encrypted characteristics with bonding, or an app-level key exchanged once (QR).

4. Menubar UI (GlucoseBar)

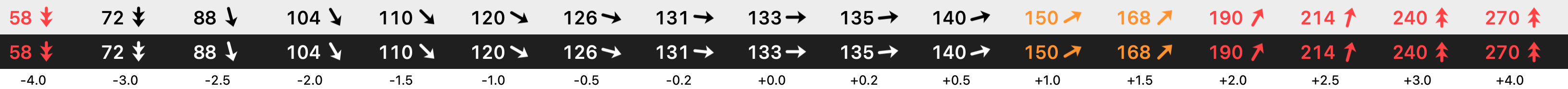

• Arrow: drawn in code (template image, so it follows light/dark menubar). Angle = rate / 3 mg/dL/min × 90°, clamped; a second chevron at ≥ 3 mg/dL/min. Keeps Libre’s bucket centres (±1.5 → 45°) but shows 0.4 vs 0.9.
• Rate source, in order: the sensor’s own rate → least-squares slope over the last 15 min → Nightscout direction.
• Colour: red < 65 or > 185, orange > 145. Stale (> 5 min): dimmed + strikethrough.

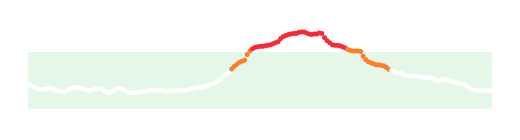

• Dropdown: value + rate, reading time and age, a 3 h sparkline, which transport delivered the latest reading.

Decisions

1. Mac app: BLE central to the phone app is the primary transport; Wi-Fi to the phone is secondary; both merged.
2. Phone app (future Juggluco replacement, Kotlin): owns the sensor and serves the Mac over BLE GATT. GlucoBridge is its seed — only the data source changes.
3. Don’t build on Juggluco’s BLE mirror. Keep “Mac reads the sensor directly” only as a possible fallback.

Open questions / next PoCs

• PoC 2: the phone app reads the sensor itself instead of Juggluco (test by force-stopping Juggluco).
• Sensor start / switch-receiver from the own app (NFC).
• Secure the BLE link (bonding or app-level encryption) and pairing UX between phone and Mac.
• Deep-Doze soak (phone unplugged ≥ 1 h), Mac sleep/wake, range, reconnects after Bluetooth toggles.
• Backfill on the Mac after sleep (HISTORY covers 3 h — enough?).
• Define the full feature list for the real apps (alarms? multiple Macs? watch?).

Toolchain notes

• adb: brew install --cask android-platform-tools.
• Android CLI (Google’s CLI for agents): curl -fsSL https://dl.google.com/android/cli/latest/darwin_arm64/install.sh | bash, then android init. Used for android create empty-activity, android run --apks … --install-options=-g, android screen capture, android docs search. It installs SDK packages on demand into ~/Library/Android/sdk.
• JDK 17 (AGP 9 requirement): brew install openjdk@17, then export JAVA_HOME=$(brew --prefix openjdk@17)/libexec/openjdk.jdk/Contents/Home.
• Swift spikes build with Command Line Tools only (swift build); bundle.sh wraps GlucoseBar into an ad-hoc-signed .app (LSUIElement, Bluetooth + Local Network usage strings).
• macOS formats times with a narrow no-break space before AM/PM (U+202F) — remember it when parsing logs.

References

• Juggluco — https://github.com/j-kaltes/Juggluco · https://www.juggluco.nl/Juggluco/libre3/
• LibreLoop — https://github.com/LoopKit/LibreLoop · Trio v1.0 — https://github.com/nightscout/Trio/releases/tag/v1.0
• RoundWhiteDiscKit — https://github.com/airedev326/RoundWhiteDiscKit
• DiaBLE (archived) — https://github.com/gui-dos/DiaBLE
• Android CLI for agents — https://developer.android.com/tools/agents
• 37 CFR 201.40(b)(7) (medical device data exemption) — https://www.law.cornell.edu/cfr/text/37/201.40
